Wing screws PLAS 31

Name: Buy Plastic Wing Screws Plas 31
SKU: 104_12
Availability: InStock

Images may differ from the original product. Colour deviations may occur. Errors and technical changes reserved.

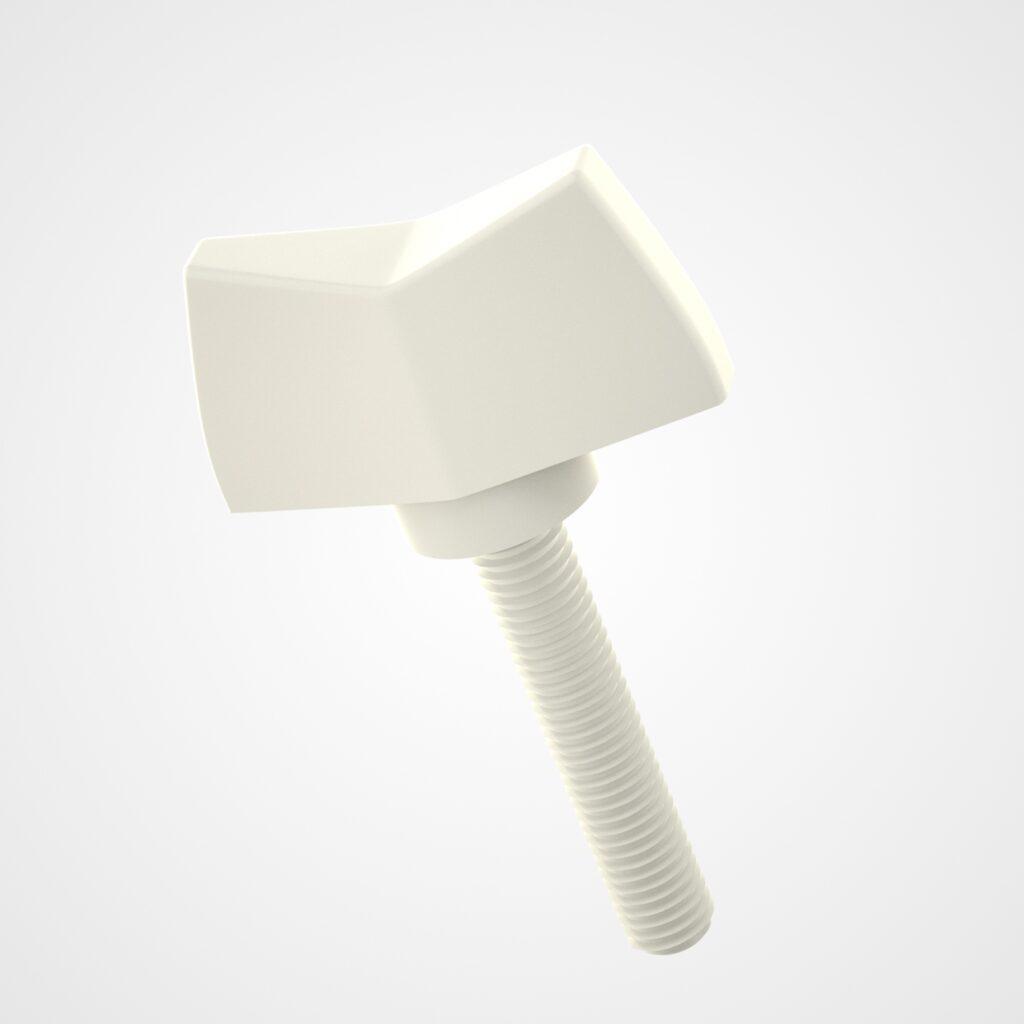

The PLAS 31 wing screw made of plastic is a particularly user-friendly fastening element. Its large wings allow effortless assembly without tools, while the lightweight and durable plastic material provides high resistance to corrosion and chemicals. This screw is suitable for various applications requiring a quick and flexible connection.

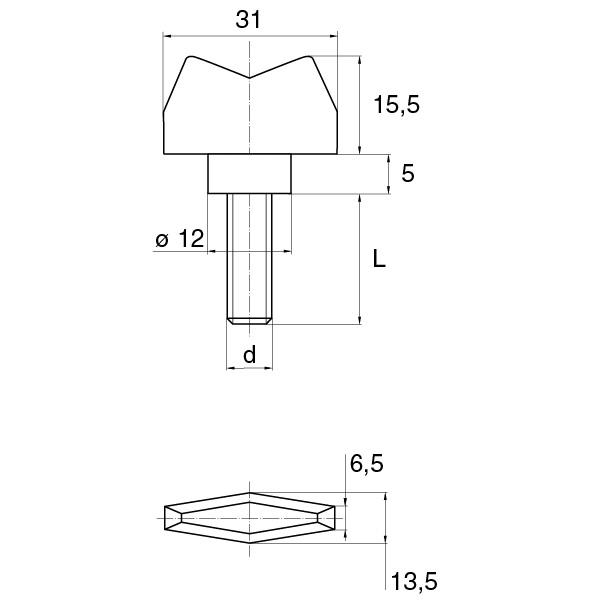

REF	d	D	L	h	H	M	A	B	d1	Material	Colour
UQFX866565F	M10	31.0	10.0	5.0	15.5	10	6.5	13.5	12.0	Polyamide	natural	OUT OF STOCK
Wing screws PLAS 31
UQFX866567F	M10	31.0	12.0	5.0	15.5	10	6.5	13.5	12.0	Polyamide	natural	OUT OF STOCK
Wing screws PLAS 31
UQFX86656BF	M10	31.0	1.0	5.0	15.5	10	6.5	13.5	12.0	Polyamide	natural	OUT OF STOCK
Wing screws PLAS 31
UQFX866575F	M10	31.0	20.0	5.0	15.5	10	6.5	13.5	12.0	Polyamide	natural	OUT OF STOCK
Wing screws PLAS 31
UQFX86657AF	M10	31.0	25.0	5.0	15.5	10	6.5	13.5	12.0	Polyamide	natural	OUT OF STOCK
Wing screws PLAS 31
UQFX866585F	M10	31.0	30.0	5.0	15.5	10	6.5	13.5	12.0	Polyamide	natural	OUT OF STOCK
Wing screws PLAS 31
UQFX86658AF	M10	31.0	35.0	5.0	15.5	10	6.5	13.5	12.0	Polyamide	natural	OUT OF STOCK
Wing screws PLAS 31

123...78

From 15.04€ incl. VAT

(12.64€ excl. VAT)

Select a reference to get the prices

€ instead of € starting from items!

Add to cart

Shipment to: Germany

Filtrez pour choisir votre produit

OB1_d

OB1_Diam

OB1_Long

OB1_h

OB1_Haut

OB1_M

OB1_A

OB1_B

OB1_d1

Material

Colour

Clear

Applications

The typical applications of this fully threaded wing screw, available at 123PlasticParts in lengths from 6 to 80 mm, include mechanical engineering, model making, medical technology, and the electrical industry. It is primarily used for housing assembly, temporary connections, or adjustments requiring easy handling. Thanks to its insulating properties, it is also suitable for electrical applications. Available thread sizes: M5, M6, M8, and M10.

Guaranteed quality

123PlasticParts offers a wide range of plastic wing screws, such as the PLAS 31 model, with fast delivery and high availability. Our screws, along with matching nuts and washers, are of excellent quality and are suitable for both DIY enthusiasts and industrial users. With our comprehensive selection, you will always find the right fastening solution.
